Application
This machine is suitable for the surface putty filling of various flat plates such as furniture, wooden door, floor, wooden plate, MDF plate, inorganic material plate, etc. with very thick or uneven tubular fibers.Working principle

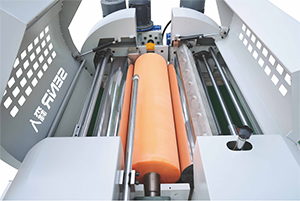

Uniform wheels are used to evenly distribute the putty on the coating wheel, and the putty roller is evenly coated on the surface of the product by the coating wheel. The makeshift wheel scrapes away excess putty and recycles it.| model | SR-R2BP-620 | SR-R2BP-920 | SR-R2BP-1320 | Model |
| Effective processing width (mm) | 620 | 920 | 1320 | Working width (mm) |
| Effective processing thickness (mm) | 2-80 | 2-80 | 2-80 | Working thickness (mm) |
| Minimum processing length (mm) | 300 | 300 | 300 | Working length (mm) |
| transfer speed (m/min) | 0-20 | 0-20 | 0-20 | Feeding speed (m/min) |
| Transmission power (kw) | 0.75 | 0.75 | 1.5 | Feeding Power (kw) |
| Coating wheel power (kw) | 0.75 | 0.75 | 1.5 | Coater roller Power (kw) |
| Uniform wheel power (kw) | 0.55 | 0.75 | 0.75 | Uniform roller Power (kw) |
| Heating power (kw) | 3 | 3 | 3 | Heation Power (kw) |
| Dimensions (LxWxH) | 2200x1850x1700 | 2200x2150x1700 | 2200x2450x1700 | Dimensions (LxWxH) |
| Power supply (V/Hz) | 380/50 | 380/50 | 380/50 | Voltage (V/Hz) |
| Paint type | UV/Water | UV/Water | UV/Water | Paint Type |
